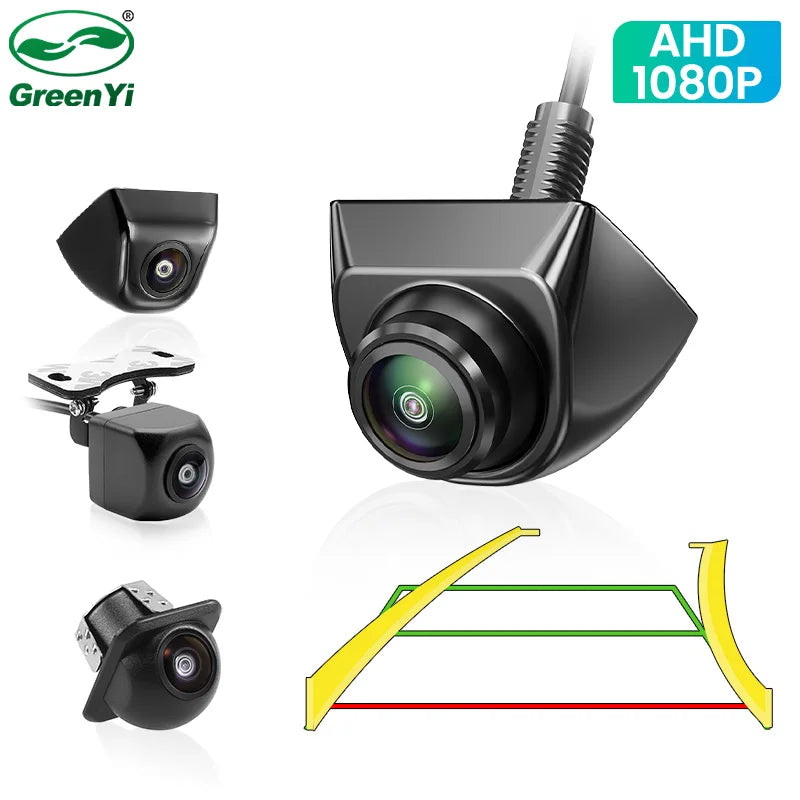

Dynamic Trajectory AHD 1080P Car Rear View Camera

Camera Feature:

* Intelligent Reverse Trajectory Dynamic Special Trunk Handle/ License Plate Light Camera, Fit for Ford Car (Please refer to the car model chart below for details).* it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module. But the camera only support Aftermarket Monitors, Android DVD and the Monitor with RCA input plug.* Imported chips reversing track, picture clarity, stability, good night vision effect.* 155 deg wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.* Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.

Parameter:

1. Pixels: AHD1080P / AHD720P Optional
2. Signal Switch: camera default as AHD signal, cut white cable can change the signal to CVBS signal.
3. View Angle: 155 deg wide degree
4. Power: DC 12V
5. TV system: PAL
6. Video Output Plug: RCA
7. Night Vision: starlight night vision
8. Sync. System: internal
9. Image Ratio: 16:9
10. White Balance: Auto
11. Waterproof: IP68
12. Video Cable Length: about 6m
13. Lens 6 glass +Metal/Plastic
14. Guide Line: Dynamic Track

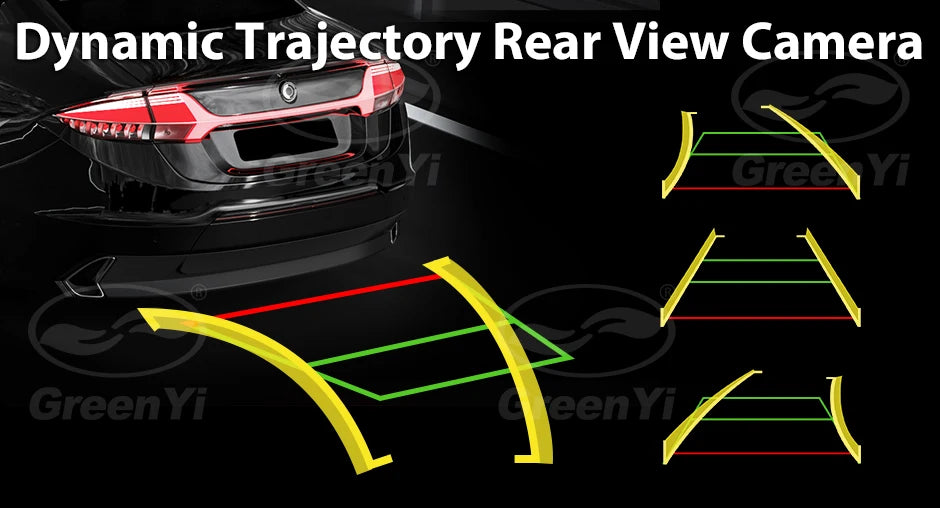

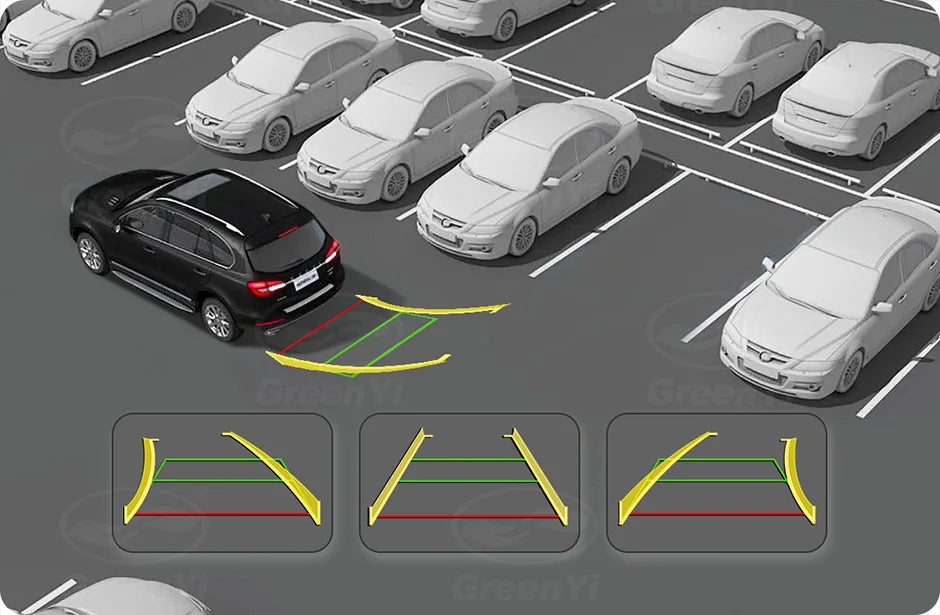

With Dynamic Trajectory

* The camera comes with three kinds of dynamic track parking lines, which will follow the vehicle's action by themselves, without steering wheel operation.

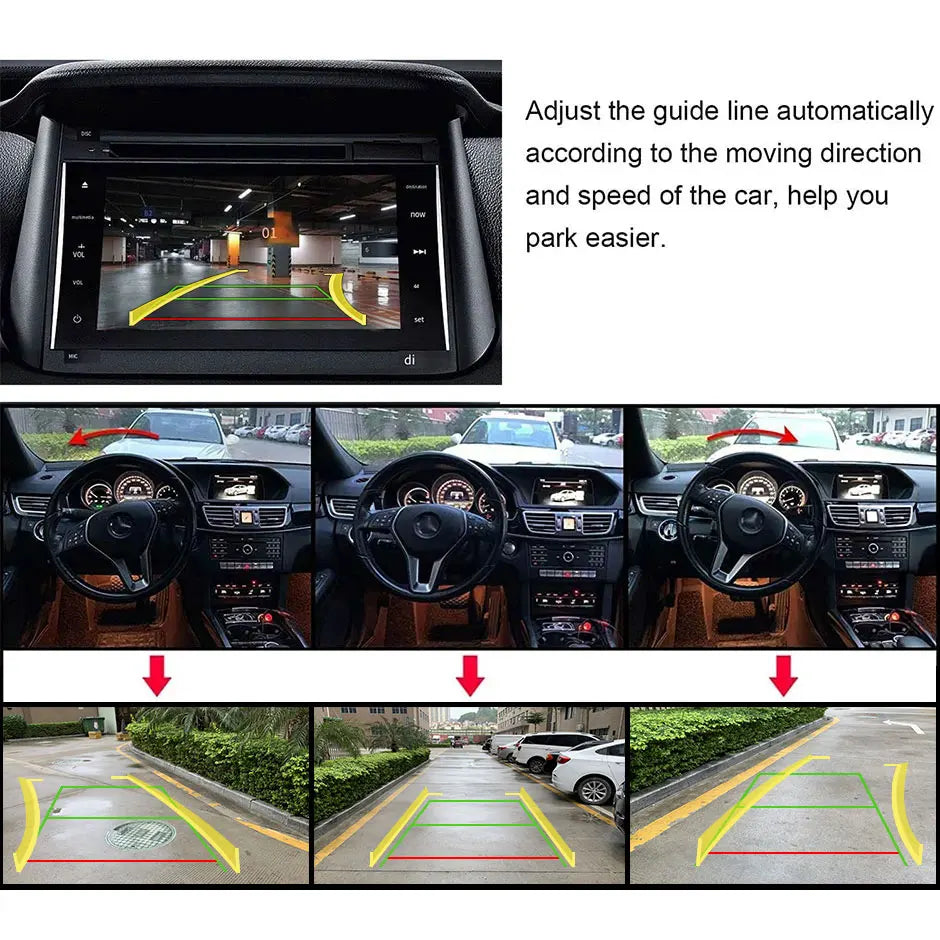

*The intelligent dynamic trajectory guide line changes according to the body's movement angle and speed when reversing.

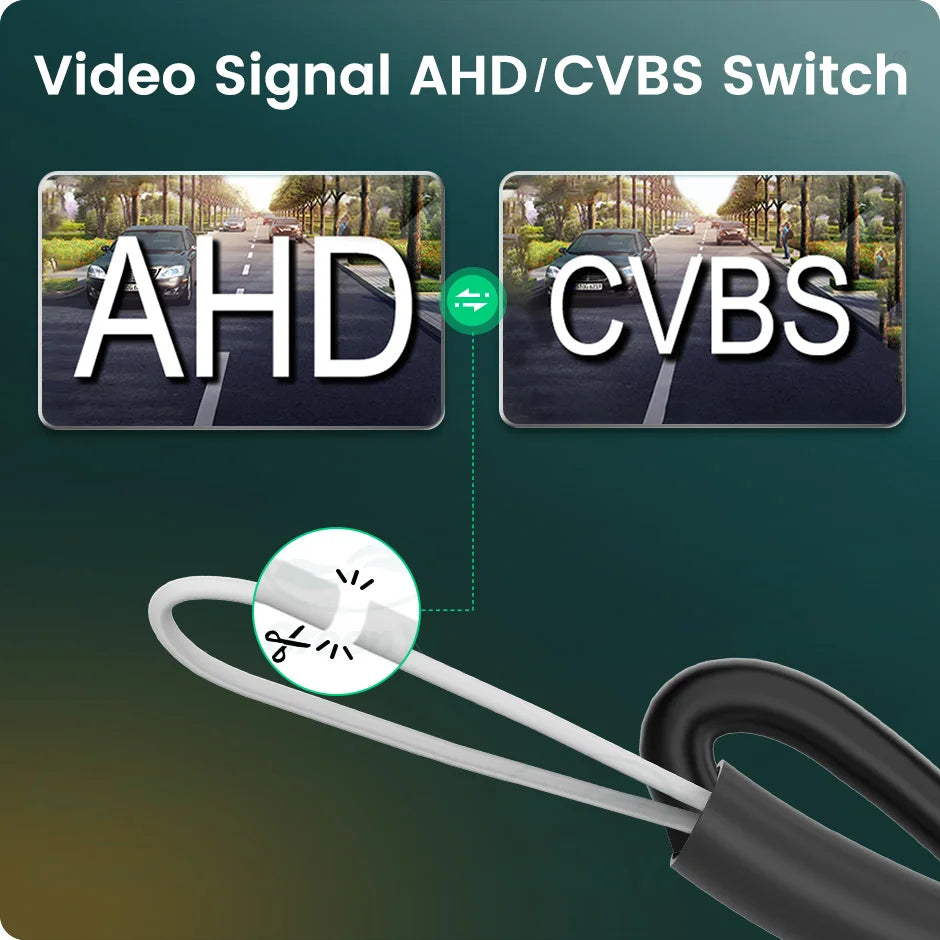

About Camera Signal Settings

Through signal control, it can support CVBS and AHD displays.
Default AHD signal
Cut the white cable→( CVBS )+( 1280x720 )

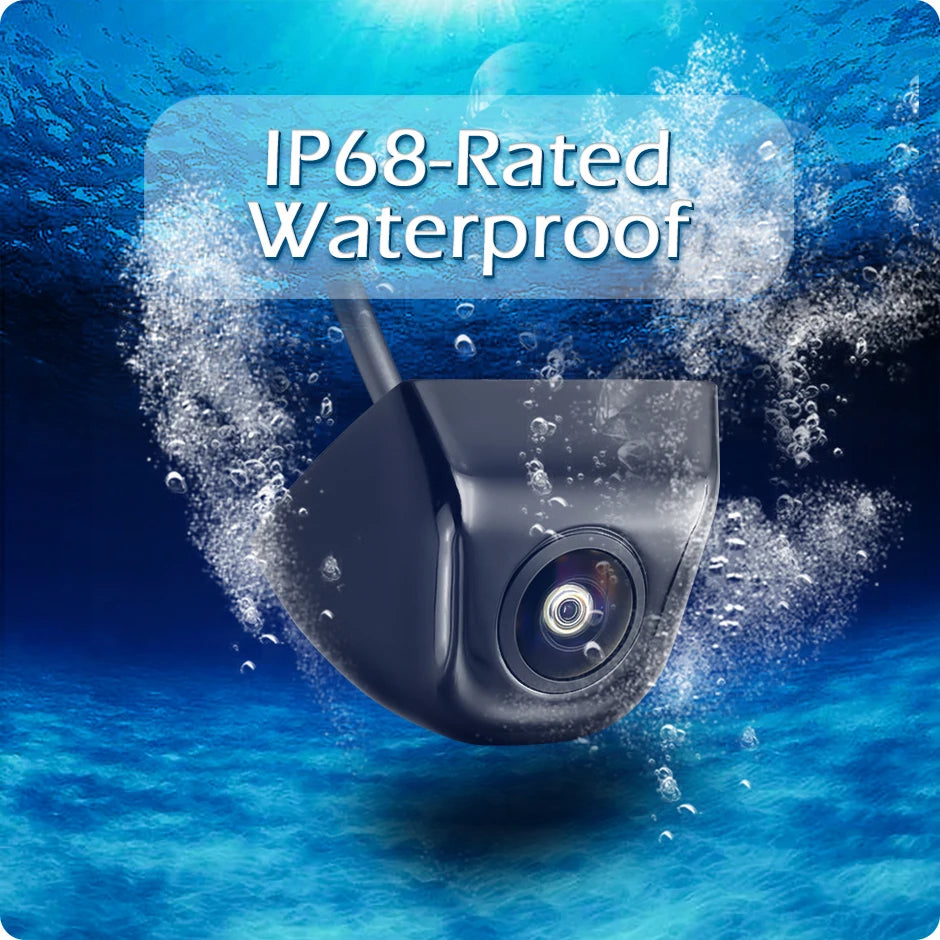

Support Waterproof

The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions

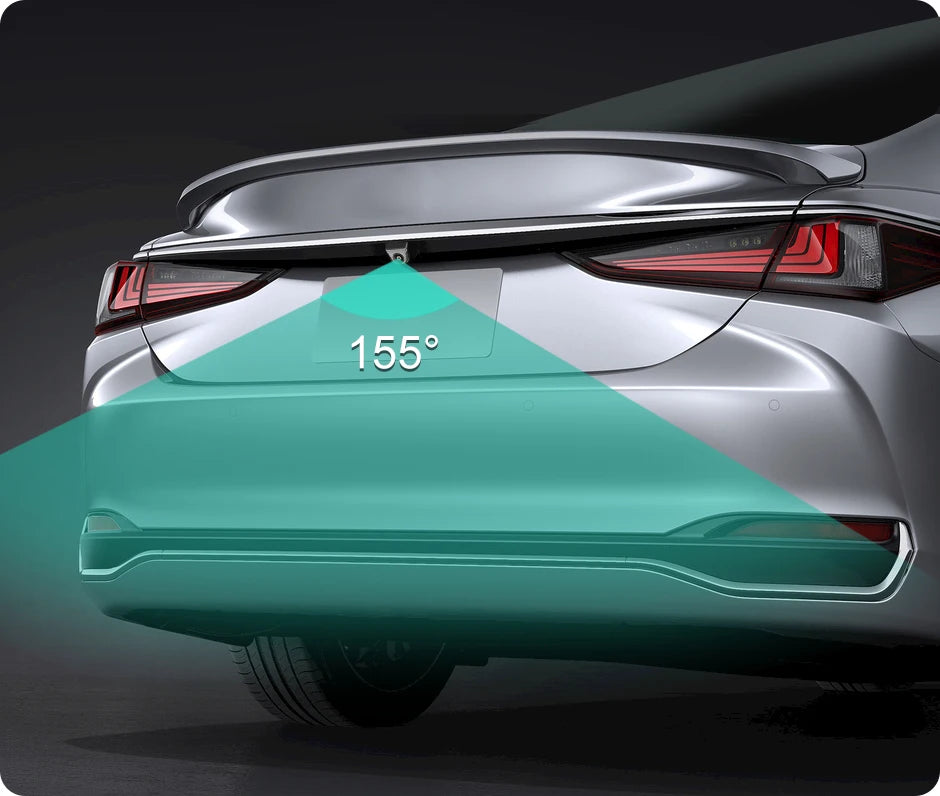

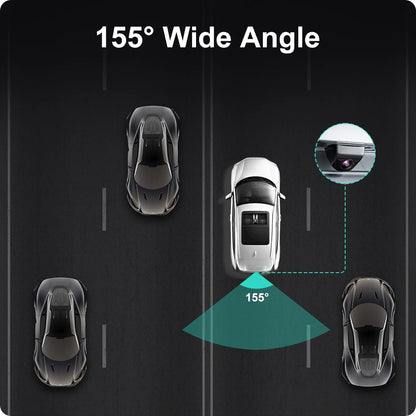

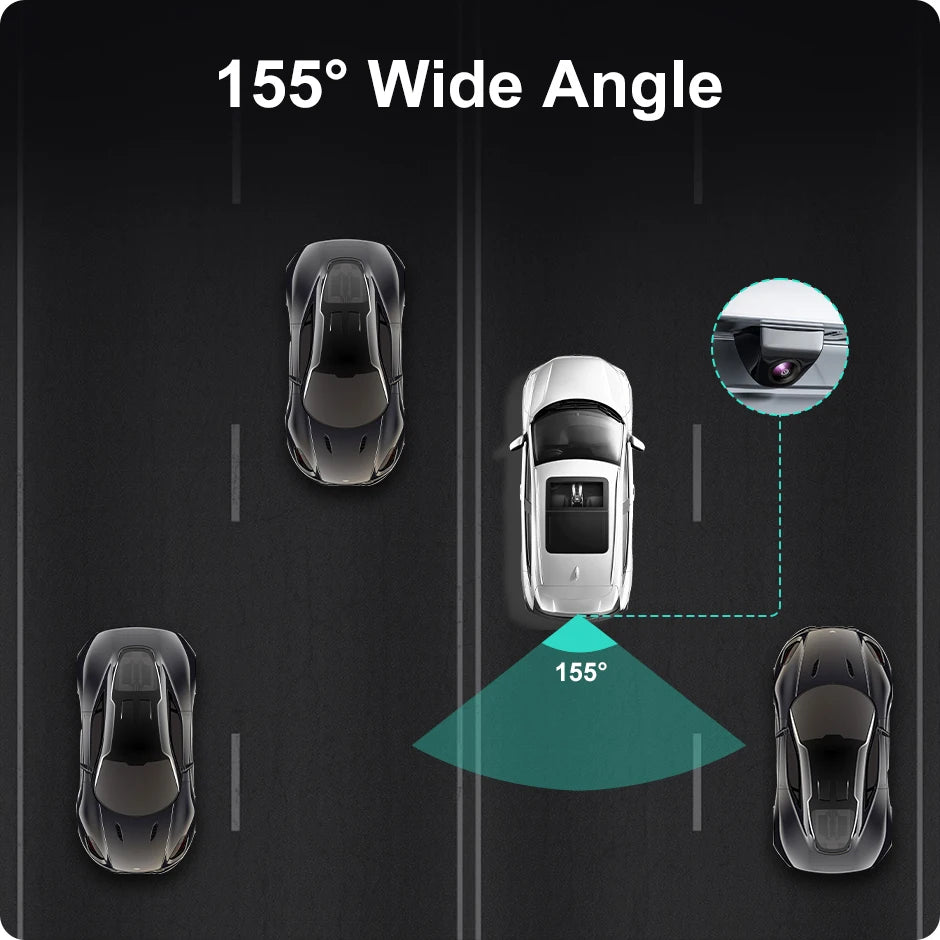

155° View Angle

* Real 155° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

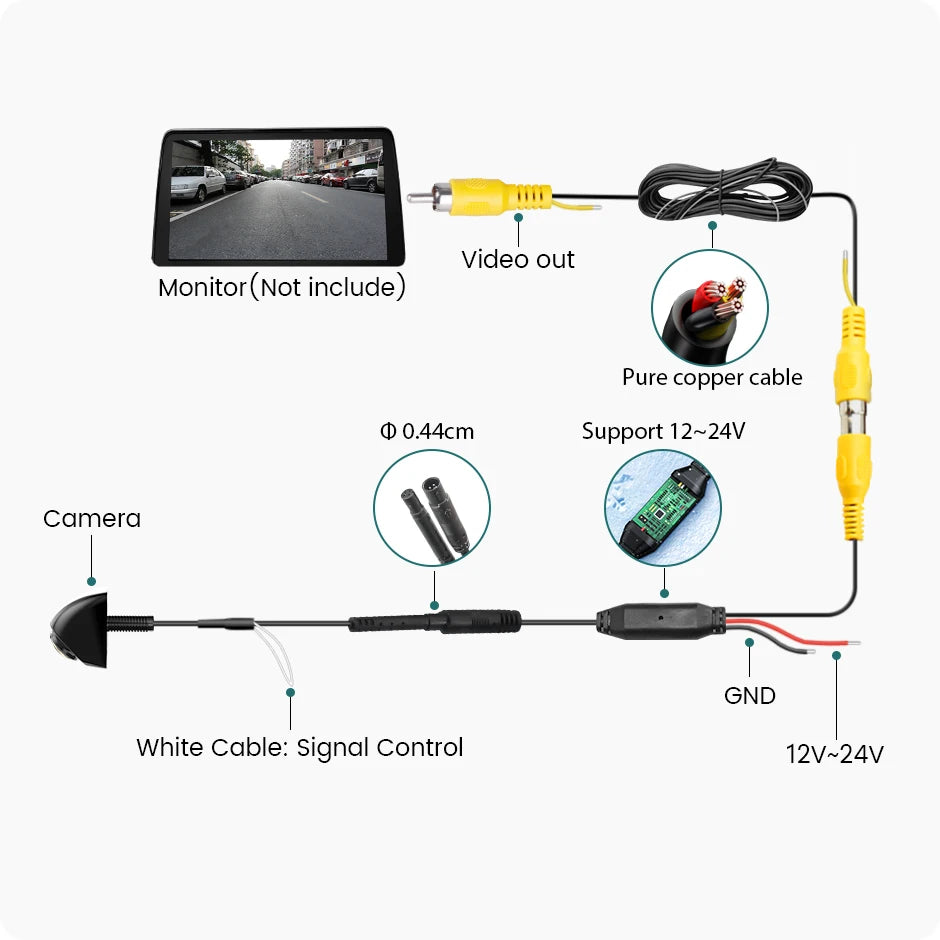

Installation Diagram
